Tristan da Cunha's Scientific Monitoring Stations

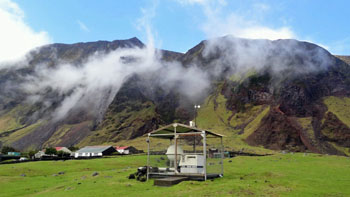

Maxime Le Maillot managed the Tristan CTBTO Station from September 2012 and sent these pictures of the station buildings situated on Hottentot Fence which houses a variety of scientific monitoring equipment described below.

Noble Gas Station

Station Manager Jeremy Peychaud has sent pictures and a report of the latest scientific monitoring station to be installed on Tristan da Cunha.

Equipment arrives on 3rd March 2010

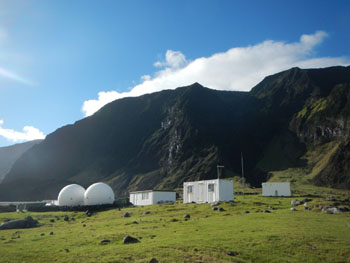

A view of the fast-growing monitoring station complex on Hottentot Fence

Gerry Repetto making sure the equipment is correctly positioned
The equipment at the centre of the new Noble Gas Station
The completed station shelter
Left: Names of the group photograph
from left to right:
The construction team of Jason Green, Gerry Repetto, Andreas Frisk, Ola Pettersson, Taz (the
dog!), Jérémy Peychaud and Robin Repetto on 19th May
Right: School children were thrilled to use some spare helium to inflate balloons on 5th July(Picture: Robin Repetto)

This station is located in Hottentot Fence or Field (also Tristan’s golf course!) with the previously installed CTBTO facilities. This fourth station completes and finalises the Tristan da Cunha site; the three first were radionuclide particulate, infrasound and hydroacoustic stations.
The detection system is made by the Swedish company Gammadata, is named SAUNA II (Swedish Automatic Unit for Noble Gas Acquisition) and is a fully automated system for detection of radioactive Xenon gas in the ambient atmosphere. The concentrations of the four isotopes 133Xe, 135Xe, 133mXe and 131mXe are measured using a sensitive - coincidence technique. The system, divided in three main parts (sampling, processing and detection), performs the activity measurement of radioactive Xenon isotopes in 12-hour samples of ambient air.
The sampling system collects about 16m3 of ambient air which will be warmed-up to 300°C in order to get purified from moisture, water and carbon dioxide. Charcoal traps will then absorb the Xenon and the remaining gas will be evacuated. Helium is used in order to flush this Xenon to the processing unit. Into the processing unit, the Xenon is once again purified from the remaining carbon dioxide and will finally be quantified and further purified by using a gas chromatograph. The Xenon sample is now introduced into one of both detectors. The detection part consists in a sensitive beta-gamma technique, where the beta particles are recorded in coincidence with the gamma radiation. Then the measurements are sent off to the CTBTO headquarter in Vienna (Austria) in order to be analysed to see if any of the four Xenon isotopes are present.
Works for this station started in December 2009 and the station was fully installed in May 2010. In between, civil works have been performed; a shelter has been built in France, transported up to Tristan in two separated parts and has been installed and put together in March 2010 thanks to the Tristan mobile crane and finally two Gammadata noble gas experts, Ola Pettersson and Andreas Frisk, who came to Tristan for the system installation in April 2010.

Jérémy Peychaud June 2010

CTBTO Station manager Léo Genin and Robin Repetto have sent some recent images of
Tristan's growing complex of scientific monitoring stations

Left : a view from the Goat Ridge
showing the buildings on Hottentot
Fence (or the golf field) November 2008

Right : close up of the complex showing left the Danish Magnetometer Building
and centre a new shelter to protect
the back-up generator as the station requires 24/7 electricity - April 2009




Left : The station looking west April 2009

Right : An evening view of the station from Robin Repetto April 2009


Ceremony to open new Danish Magnetometer Building

A ceremony was held on Friday 14th November 2008 to open the new Station Magnetometer Building which is run by Danish Meteorological Institute (DMI) and the Danish National Space

Administrator David Morley cuts the tape to declare the building open with CTBTO Monitoring Station Manager Leo Genin alongside. See article on Leo's arrival on the Station News Page. Photo from Carlene Glass-Green.

Report on the new magnetism study project by Dr. Juergen Matzka

The first part of the magnetometer station on Tristan da Cunha is in operation now. A ribbon cutting ceremony on Friday November 14, 2008, to mark the start of the station was attended by the Tristanians involved in the project, by CTBTO Station manager Leo Genin, the heads of departments and administrator David Morley. In the previous months, Leo had organized a pilot survey of the area on the 'golf course' and then the erection of the hut that houses the instruments.

On Tristan, we are monitoring the strength of geomagnetic field, that is the natural magnetic field of the Earth, now with very high precision, says Juergen Matzka from the Danish Meteorological Institute. The data contains magnetic effects from all sorts of processes, for example the sunshine hitting the atmosphere. This is very interesting, since Tristan is located in a huge anomaly, where the geomagnetic field is too weak and too steep compared to other places on the Earth. Juergen, who visited Tristan in 2004 already, will add more magnetometers to the station in 2009. He is very grateful for the support for this project by the Tristanians and their government, by colleagues from the South African Hermanus Magnetic Observatory, and for the excellent work of EnviroConsult and the involved Tristanians.

The magnetometer station is a joint project of the Danish Meteorological Institute (DMI) and the Danish National Space
Institute, funded by the Danish Natural Science Research Council.

Dr. Juergen Matzka
Remote Sensing and Geomagnetism
Danish Meteorological Insti
Copenhagen, DENMARK
Photograph of some of the Tristan workers who helped with the CTBTO building project from Leo Genin.

From left to right:
Dave Glass, Donny Green, Robin Repetto, Dion Green, Gerry Repetto, Graham Rogers, Shane Green.

Heads of Department are shown outside the new CTBTO Station Magnetometer Building as they gathered for a commissioning ceremony on Friday 14th November 2008.

The picture was taken by CTBTO Monitoring Station Manager Leo Genin and shows from left to right):
Carlene Glass-Green, Iris Green, Lorraine Repetto, Marlene Swain, Jimmy Glass, Stanley Swain, Andrea Repetto, Keith Green and Administrator David Morley.

Technical Specifications of the CTBTO Station

In addition to its IMS infra sound and radio nuclide facilities, Tristan da Cunha also hosts one of the network’s 11 hydro acoustic stations used to detect natural and man-made phenomena in the oceans, including underwater nuclear detonations. This so-called T-Phase station is one of five of this type located on oceanic islands and utilizing seismometers to detect acoustic waves that are converted to seismic waves once they hit land.

The Hydro acoustic T-phase station HA09 consists of two three-component seismometers.  The northern one is located near the Settlement (see photographs above and below) about 500 m from the coast while the western one is located at the Potato Patches about one kilometre from the sea.

In each element site, three principal sub-structures can be found: a data acquisition system, power supply system and satellite communications system. At the northern element site near the village, cultural noise includes people, vehicles, etc. Although livestock are virtually the only source of human-related noise in the vicinity of the western element site, this area is subject to extreme sporadic winds.

Edited information from the CTBTO Preparatory Commission's website in consultation with their website management.
To find out more about the Tristan CTBTO Station and the broader work of the organisation,
check out their appropriately comprehensive site on :

Station History

This new IMS station was designed collaboratively by the CTBTO Provisional Technical Secretariat and Nanometrics with Guralp Systems providing the construction management and support. In total, three trips to Tristan da Cunha were required to complete station installation. The first visit, the site survey, took place in November 2001. Site preparation and construction took place in September and October 2003. The final installation mission took place from 16 January to 23 March 2004.

Due to the extreme remoteness of Tristan da Cunha and the lack of regular transport, the installation team completed site construction and conducted equipment installation and certification tests all during the same visit. Data began to arrive at the IMS Laboratory in March 2004. Following tests the station was certified in December 2004.

We reproduce a letter from Andrew Allen, Head of Southern Oceans Team, OTD
to Ambassador Tibor Toth, Executive Secretary, Provisional Technical Secretariat ,
Comprehensive Nuclear Test Ban Treaty Organisation , Vienna International Centre,Vienna, Austria.

in which he highlights the crucial contribution that the station makes to providing 24/7 electrical supply on Tristan da Cunha.

Tristan da Cunha Electricity

As you may know, a fire on Tristan da Cunha in February this year severely affected the supply of power to the island, with implications for the three IMS stations the UK hosts there and of course for the islanders themselves.

The fire has helped highlight the crucial role played by the Comprehensive Nuclear Test Ban Treaty Organisation (CTBTO) in the supply of continuous power to the island. This role has depended on a close co-operation between the CTBTO, the island authorities and Ovenstones, the company which runs the fish processing factory on the island and which is also responsible for management of the power supply to the island.

The CTBTO, through their agents Enviroconsult, runs the three IMS stations, which help contribute to international nuclear non-proliferation efforts. Of more immediate relevance to the daily lives of islanders is, however, the fact that the CTBTO has, since around March 2004, continuously provided 8 hours of electricity free of charge to the island, during night-time hours. Added to Ovenstones' supply of electricity for 16 hours a day, the CTBTO’s generous and voluntary contribution enables the supply of power 24 hours a day, 7 days a week to the islanders.

The UK Government is highly appreciative of the CTBTO’s essential contribution to the life and economy of Tristan da Cunha , and is sure that the islanders themselves are equally appreciative. I very much hope this close co-operation with the CTBTO can continue to flourish.

Yours sincerely

Andrew Allen

Head of Southern Oceans Team, OTD
